Transfer Trolley

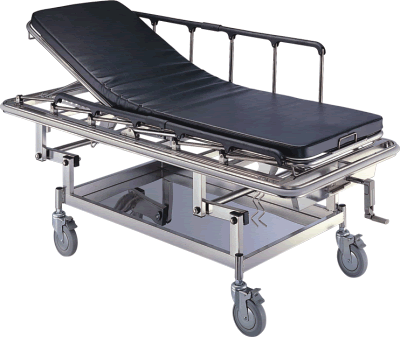

APC-80911
Single-crank manual emergency stretcher

Specification

- Complete unit is stainless steel.
- Mattress is high density foam covered with ventilation plastic leather, 2” thick.
- Length of bed: 187cmL x 75cmW x 75cm(include guard rail±5%).
- With 6”casters.

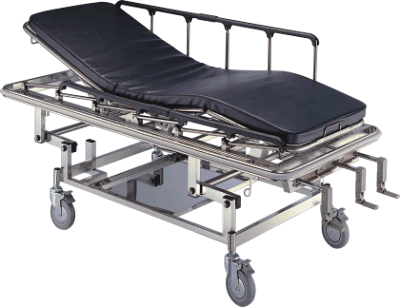

APC-8093
3-crank manual emergency stretcher
(ascendable bed)

Specification

Specifications :

Specification:

- Overall size:L2100 * W840mm
- Sleeping surface size:L1900 * W730mm
- Sleeping surface height:H573 ~ 925mm

- Sleeping surface back board are made of X-ray transparent platform

- Sleeping surface foot board are made of steel powder coated

- Two Hydraulic control Hi-Lo and Trendelenburg / Reverse

- Bottom cover are made of ABS for load with oxygen and articles

Functions :

- Two jack control of back lifting

- Back-rest lifting 75°

- Knee-rest lifting 30° (crank collapsible)

- X-ray photo can insert into back board

- Sleeping surface Hi-Lo adjustable 330 mm

- Trendelenburg & Reverse -16~ +16 degree by Foot control

Standard :

- 2” high density PU foam mattress covered with synthetic leather x 1

- Both sides collapsible side rail can be folded manually

- Two Section I.V. Pole are provided head / foot position

- 8” Lockable & Directional Castors central locking system
